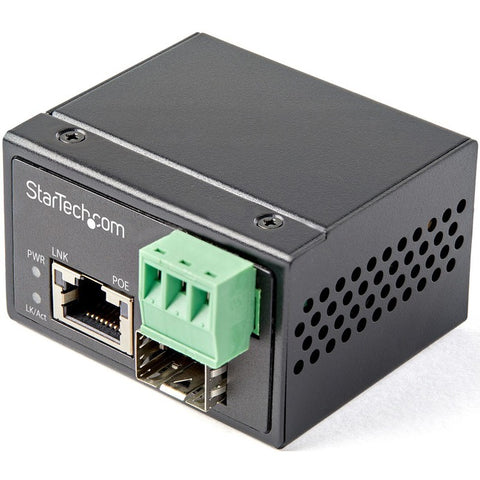

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.

Designed for Small Spaces & Harsh Environments

At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURESTORAGE TEMPERATURE

40°C to 75°C

-40°C to 85°C

104°F to 167°F104°F to 185°FUp to 30 Watts of Power for Connected Devices

30 watts of available support a wide range of devices such as:

• Surveillance Cameras
• Wireless Access Points
• Locks & Sensors
• Lighting

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Industrial IoT and Bringing Connectivity Outside of the Data Center

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
• TECH SPECS: 1 Gbps
• 1 x Open SFP (MSA Compliant)
• 1x RJ45
• 48V-56VDC
• IEEE 802.3af / IEEE 802.3at (30W)
• 10/100/1000Mbps
• LFP
• 16K Jumbo Frames
• DIN or Wall Mount Hardware Included
• ROBUST DESIGN: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C
• Vibration, shock & free fall rated
• Rugged IP-30 aluminum housing
• Hardened operating temp -40C to 75C
• 2 yr warr
• OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
• FLEXIBLE POWER INPUT: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
• STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years
• This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
