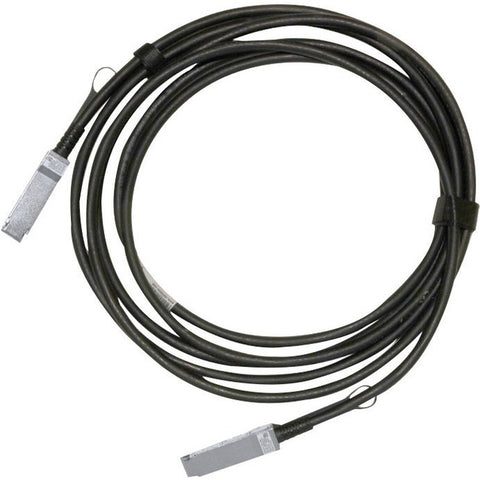

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable

We currently have 8 in stock.
SKU: MPN: MCP1600-E005E26 UPC:
Product Description
Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.

Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
  • SFF-8636 compliant I2 C management interface
  • LF (Lead Free) HF (Halogen Free) PCB
  • LSZH (Low Smoke Zero Halogen) jacket
  • Hot pluggable
  • RoHS compliant
  • Bit Error Rate (BER) better than 1E-15 with Mellanox systems
  • Operating case temperature 0-70°C
  • Single 3.3V supply voltage
  • SFF-8665 compliant QSFP28
  • Up to 100Gb/s data rate

Have a Question before ordering?

We will gladly answer within 24 hours!

Ask a Question
Information
Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.

Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
  • SFF-8636 compliant I2 C management interface
  • LF (Lead Free) HF (Halogen Free) PCB
  • LSZH (Low Smoke Zero Halogen) jacket
  • Hot pluggable
  • RoHS compliant
  • Bit Error Rate (BER) better than 1E-15 with Mellanox systems
  • Operating case temperature 0-70°C
  • Single 3.3V supply voltage
  • SFF-8665 compliant QSFP28
  • Up to 100Gb/s data rate
