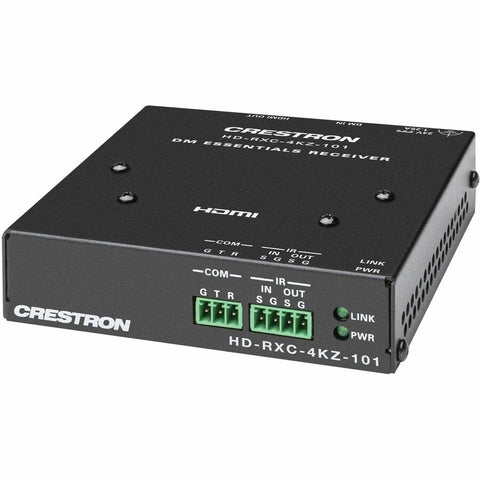

The HD-RXC-4KZ-101 is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-RXC-4KZ-101 to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher

The DM Essentials input port of the HD-RXC-4KZ-101 must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.

The HD-RXC-4KZ-101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101 is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-RXC-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

Compact, Surface-Mountable Design

Compact in design, the HD-RXC-4KZ-101 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXC-4KZ-101 can receive power from the included power pack or from the remote DM Essentials transmitter or DMPS Essentials switcher.

Key Features

• Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
• Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• Bidirectional RS-232 and IR pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Essentials transmitter or DMPS Essentials switcher

• Video Extender Receiver is all you need for dependable and productive audio/video transmission
• 1080i supported video mode for pleasurable viewing and dependable usage
• 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
• HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
• Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
• The HD-RXC-4KZ-101 video extender receiver provides plenty of freedom with wired connectivity
• 130 ft maximum operating distance to allow efficient coverage and maximum usability
• 4K graphics mode provides optimal video output with remarkable picture clarity
• Surface-mountable form factor allows hassle-free and easy usage with increased efficiency
• Video Extender Receiver lets you conveniently display content from your computers, tablets, mobile phones, or any number of devices on your flat screen display
