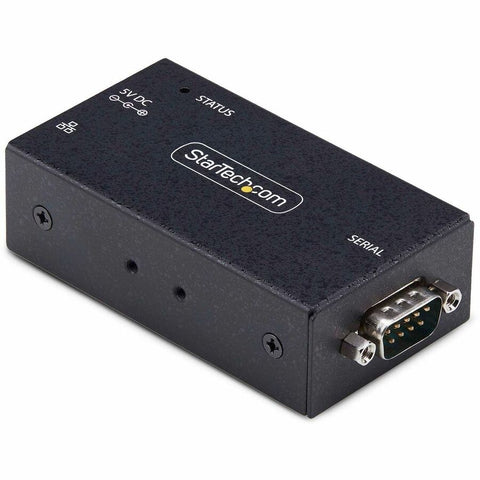

This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The serial over LAN adapter is highly customizable to support various applications. It can be used to remotely control an RS232 device directly. Alternatively, two serial over LAN adapters can be connected to each other on the same network to create a full end-to-end RS232 serial connection. The Windows-based companion software, Device Server Manager (DSM), enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial-to-Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments.

Flexible Installation and Rugged Chassis

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

• SINGLE PORT POE SERIAL TO IP CONVERTER: PoE powered RJ45 LAN to RS232 to connect serial devices over IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 port up to 921.6Kbps; TAA-compliant
• POE & FAST ETHERNET:Single RJ45 port compatible w/802.3af & auto-negotiation 10/100Mbps; Serial device server supports Telnet (RFC2217)/UDP/TCP client/server; Serial to LAN converter w/dual power options, M-size barrel plug & PoE; Supports 5V over pin 9
• VIRTUAL COM AND WEBUI: Windows-based DSM (Device Server Manager) software enables virtual COM port management for one or more serial device servers; Fully configurable through a WebUI with universal OS compatibility
• MOUNTING OPTIONS: Includes all the necessary hardware for wall and DIN rail mounting; Multiple mounting holes on the RS232 over IP adapter allow installation in the optimal orientation for any application
• RUGGED ENCLOSURE: All-metal housing ensures durability in harsh conditions; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm); Supports Level-4 ESD protection (15kV air/8kV contact)
