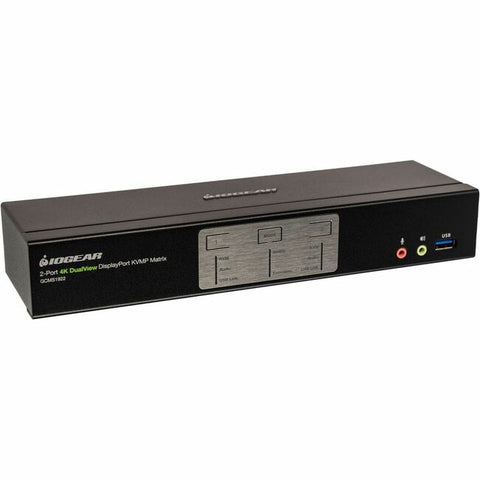

Maximize your high-end workstations with the GCMS1922 2-Port 4K Dual View DisplayPort Mini matrix KVM Switch. Experience Cinema 4K resolutions-up to 4096x2160@60Hz on each monitor along with rich bass and 7.1 surround sound and two USB3.0 peripheral ports
Dual Modes to Maximum Productivity
When most of multi-monitor KVMs provide only desktop extension from single computer, IOGEAR GCMS1922 provides both extension and matrix modes to increase the productivity. When in extension mode it expands the desktop to two screens, GCMS1922's matrix mode allows people to see the contents from different sources on each screen. There are two easy ways to toggle between the extension and matrix modes, just simply push the mode button on the front panel or the remote port switch module. GCMS1922 is the ideal tool for multi-tasks users.
Crossover Switching. No software needed.
In Matrix Mode, view two different computer desktops on connected monitors and use your mouse to travel across both systems without needing hotkeys or push button to access either computer. No software needed. With multiple layouts available.
Audio Mixer for multi-tasking operations
Sound can serve as a helpful alert for better situational awareness while multitasking. When using the Audio Mixer feature, the audio coming from both computers can be mixed up to hear both audio sources simultaneously, regardless of which computer is in focus.
Dual View Console controls two computers and two USB 3.0 peripherals
Dual Operation Modes
Extension Mode - access one PC at a time and allows content of the current focus computer to be displayed over two monitors
Matrix Mode - allows contents of two computers to be displayed separately on two monitors regardless the computer focus
Port switching via pushbuttons, hotkeys, mouse wheel1, mouse cursor and remote port selector
Crossover Switching - Under the Matrix Mode, the mouse cursor can across two monitors for instant switching between two computers
Independent Switching of KVM, USB and Audio focus
Superior 4K video quality - True 4k (4096x2160@60Hz)
Video DynaSync - Optimize video resolution and eliminate display issue between port switcthing
DisplayPort 1.2, HDMI and HDCP compliant
2-Port USB3.1 with super speed 5 Gbps transfer rate
Audio Mixer - enable mixing up to two audio sources and output the mixed audio to the speakers.
Power on Detection - if a computer is powered OFF, GCMS1922 automatically switch to the next powered ON computer
Mouse emulation or bypass feature supports most of mouse drivers and multifunction mice
Keyboard emulation or bypass feature supports most of multifunction keyboard
