Tripp Lite UPS Maintenance Bypass Panel for SUT20K - 3 Breakers
Bypass an SUT20K UPS to Perform Maintenance

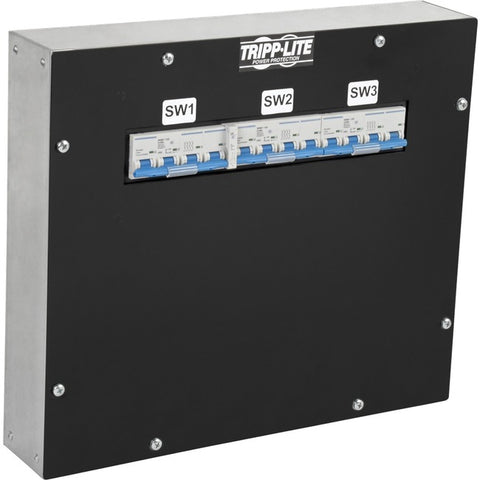

For use with Tripp Lite's SUT20K 3-phase UPS system, the SUT20KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel's trim cover to be removed for internal access. The short circuit rating is 10 kAIC. Maximum current capacity is 80A.
Convenient Wall-Mount Installation
Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
The SUT20KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
- Maximum current capacity is 80A
- Mounting holes for convenient wall installation
- Three built-in 4-pole circuit breakers for Input, Bypass and Output
- Allows connected loads to remain continuously powered
- Isolates a Tripp Lite SUT20K UPS from connected loads to permit maintenance
