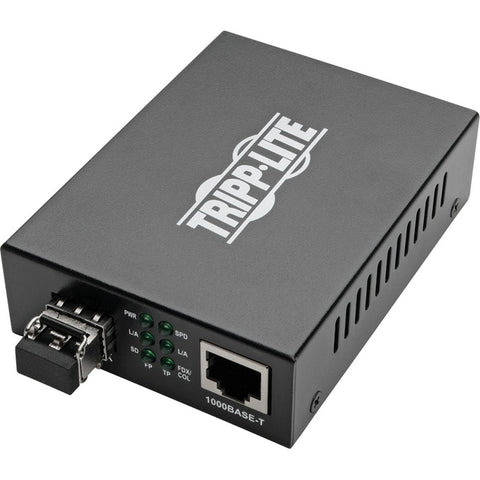

Tripp Lite N785-INT-LC-MM Transceivers-Media Converter

Tripp Lite N785-INT-LC-MM Transceivers-Media Converter

  • $ 197.99

We currently have 11 in stock.
Product Description

The economical N785-INT-LC-MM Gigabit Multimode Fiber to Ethernet Media Converter allows you to extend your 10/100/1000 Mbps Ethernet connection up to 550 meters (1,804 feet) without the limitations of extra Cat5e/6 UTP cabling. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to use LC multimode fiber optic cabling for greater distances.
Use copper UTP cabling to connect one 850 nm N785-INT-LC-MM converter to your network device, such as a computer, and another converter to a network switch. The two converters are connected by a multimode fiber optic cable with LC connectors. The N785-INT-LC-MM supports 50/125 multimode cable up to 550 meters and 62.5/125 multimode cable up to 400 meters.
Monitoring and controlling your network nodes is easy with the converter's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance.
The N785-INT-LC-MM includes an external power supply with international plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112). The plug-and-play fiber-to-copper media converter requires no software or drivers and is easy to set up.


Extends a Gigabit Ethernet Signal up to 550 m (1,804 ft.) Using LC Multimode Cable

  • Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
  • Fiber optic technology more effective than Cat5e/6 over long distances
  • Supports 50/125 multimode fiber optic cabling up to 550 m
  • Supports 62.5/125 multimode fiber optic cabling up to 400 m
  • Connection requires an N785-INT-LC-MM at both ends

Advanced Monitoring and Control

  • Supports automatic sensing of network speed
  • Supports both full-duplex and half-duplex operation
  • Supports automatic MDI/MDI-X configuration
  • 6 LEDs indicate network and fiber link status at a glance

Plug-and-Play Operation

  • No additional software or drivers required
  • Compact unit sets up in minutes
  • Durable metal housing designed to last
  • Power supply includes international plug adapters for North America, U.K., Europe and Australia

  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
