Tripp Lite HDMI Over Cat5-Cat6 Active Video Extender Remote 1080p 60Hz 200' -> May Require up to 5 Business Days to Ship

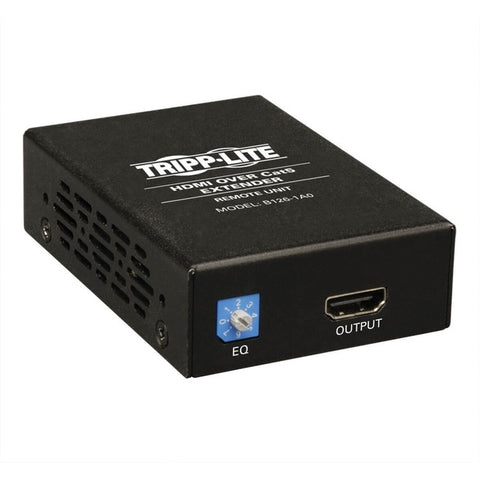

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Plug and play-no software or drivers to install
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works in tandem with B126-002 or B126-004 transmitter unit
- Works with all operating systems and HDMI video sources
- Audio & Video Consoles/Extenders
- External Power Supply
- Form Factor:Wall Mountable
- Limited Warranty:1 Year
- Manufacturer Part Number:B126-1A0
- Mounting Hardware
- Network Hardware
- Owner's manual
- Package Contents:B126-1A0 Video Console
- Product Model:B126-1A0
- Product Name:B126-1A0 Video Console
- Receiver Depth:3.60"
- Receiver Height:1"
- Receiver Width:2.50"
- Screwdriver for Adjustment of Equalization
- Tripp Lite
