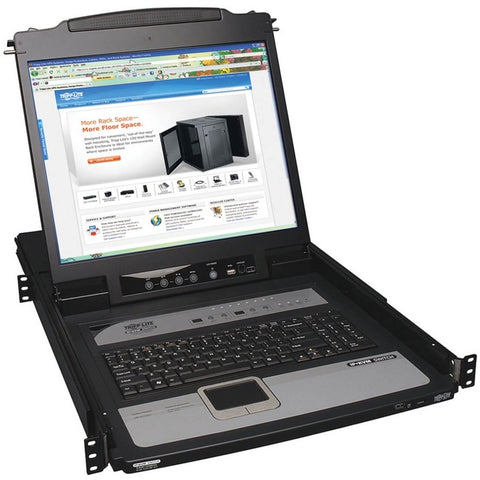

Tripp Lite 8-Port Rack Console KVM Switch built in IP w- 19" LCD 1U

Tripp Lite 8-Port Rack Console KVM Switch built in IP w- 19" LCD 1U

SKU: MPN: B020-U08-19-IP UPC:
  • $ 2,064.99 authorized • brand new • full warranty

We currently have 4 in stock.
Product Information
Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Allows up to 64 user accounts, with multi-level security
  • Compatible with all operating systems
  • Control computers/servers locally or via LAN, WAN or Internet
  • Occupies just 1U of space in a rack-mountable drawer
  • 2 x 6 ft. USB/PS2 Combo KVM Cable Kits
  • and Device Files
  • C13 to 5-15P Power Cord
  • CD with Owners Manual
  • Color:Black
  • Depth:27"
  • Environmental Certification:WEEE
  • Environmentally Friendly:Yes
  • Grounding Wire
  • Height:1.7"
  • Limited Warranty:1 Year
  • Manufacturer Part Number:B020-U08-19-IP
  • Material:Steel
  • Network & Communication
  • Package Contents:8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
  • Platform Supported:Mac
  • Product Line:NetDirector
  • Product Model:B020-U08-19-IP
  • Product Name:8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
  • Quick Start Guide
  • Rack Height:1U
  • Rackmount Hardware
  • Rackmount LCDs
  • RJ11 to DB9 firmware upgrade cable
  • Tripp Lite
  • USB/PS2 Combo Console Cable Kit
  • Weight (Approximate):31 lb
  • Width:18.9"
