Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA -> May Require up to 5 Business Days to Ship

Tripp Lite 32-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA -> May Require up to 5 Business Days to Ship

SKU: MPN: B064-032-02-IPG UPC:
  • $ 3,320.99 authorized • brand new • full warranty

We currently have 119 in stock.
Product Information

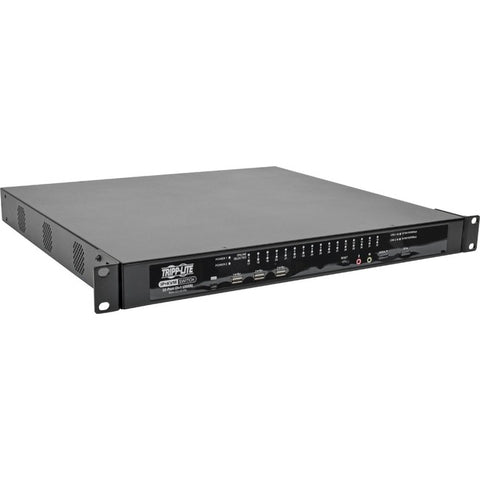

Tripp Lite's 32-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz - 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft. (50 m). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
  • Blade server support
  • Remote Authentication: RADIUS, LDAP, LDAPS, and Active Directory
  • Simultaneous support for 3 users (1 local, 2 remote)
  • Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols
  • Virtual Media allows computers connected using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected
  • 2 x C5 to 5-15P Power Cords
  • CD With Owner's Manual
  • Form Factor:Rack-mountable
  • Grounding Wire
  • KVM Switchboxes
  • KVMs/Switchboxes
  • Limited Warranty:3 Year
  • Manufacturer Part Number:B064-032-02-IPG
  • Package Contents:NetDirector KVM Switch
  • Product Line:NetDirector
  • Product Model:B064-032-02-IPG
  • Product Name:NetDirector KVM Switch
  • Quick Start Guide
  • Rack Height:1U
  • Rackmount Hardware
  • RJ-45 to DB-9 Adapter For Dial-In Modem Functionality
  • Set of Foot Pads
  • Tripp Lite
  • USB/PS/2 Combo Console Cable Kit
