4 Port DisplayPort 1.4 to DisplayPort MST Hub Splitter

  • $ 115.00

We currently have 4 in stock.
SKU: MPN: CE-DP0R11-S1 UPC:
Product Description

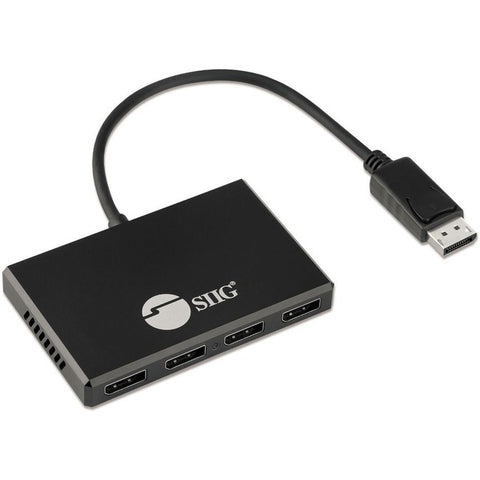

1x4 Splitter, connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), no driver required, Windows PCs, not Mac OS compatible

  • Connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
  • Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, four 2K, four 1080p, 4K+2K+1080p+1080p etc. Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth of 32.4Gbps
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Plug-n-play, trouble-free set up without complicated hardware or driver installation

  • Split CATV and other signals with this satellite splitter so that it can be used for more than one device
  • Up to 7680 x 4320 video resolution.
  • DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
  • With USB port data can be moved between devices in fragments of a second
